Networking Interview Questions & Answers

1) What is a Link?

A link refers to the connectivity between two devices. It includes the type of cables and protocols used in order for one device to be able to communicate with the other.

2) What are the layers of the OSI reference model?

There are 7 OSI layers: Physical Layer, Data Link Layer, Network Layer, Transport Layer, Session Layer, Presentation Layer and Application Layer.

3) What is backbone network?

A backbone network is a centralized infrastructure that is designed to distribute different routes and data to various networks. It also handles management of bandwidth and various channels.

4) What is a LAN?

LAN is short for Local Area Network. It refers to the connection between computers and other network devices that are located within a small physical location.

5) What is a node?

A node refers to a point or joint where a connection takes place. It can be computer or device that is part of a network. Two or more nodes are needed in order to form a network connection.

6) What are routers?

Routers can connect two or more network segments. These are intelligent network devices that store information in its routing table such as paths, hops and bottlenecks. With this info, they are able to determine the best path for data transfer. Routers operate at the OSI Network Layer.

7) What is point to point link?

It refers to a direct connection between two computers on a network. A point to point connection does not need any other network devices other than connecting a cable to the NIC cards of both computers.

8) What is anonymous FTP?

Anonymous FTP is a way of granting user access to files in public servers. Users that are allowed access to data in these servers do not need to identify themselves, but instead log in as an anonymous guest.

9) What is subnet mask?

A subnet mask is combined with an IP address in order to identify two parts: the extended network address and the host address. Like an IP address, a subnet mask is made up of 32 bits.

10) What is the maximum length allowed for a UTP cable?

A single segment of UTP cable has an allowable length of 90 to 100 meters. This limitation can be overcome by using repeaters and switches.

11) What is data encapsulation?

Data encapsulation is the process of breaking down information into smaller manageable chunks before it is transmitted across the network. It is also in this process that the source and destination addresses are attached into the headers, along with parity checks.

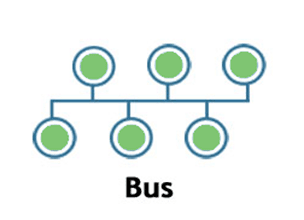

12) Describe Network Topology

Network Topology refers to the layout of a computer network. It shows how devices and cables are physically laid out, as well as how they connect to one another.

13) What is VPN?

VPN means Virtual Private Network, a technology that allows a secure tunnel to be created across a network such as the Internet. For example, VPNs allow you to establish a secure dial-up connection to a remote server.

14) Briefly describe NAT.

NAT is Network Address Translation. This is a protocol that provides a way for multiple computers on a common network to share single connection to the Internet.

15) What is the job of the Network Layer under the OSI reference model?

The Network layer is responsible for data routing, packet switching and control of network congestion. Routers operate under this layer.

16) How does a network topology affect your decision in setting up a network?

Network topology dictates what media you must use to interconnect devices. It also serves as basis on what materials, connector and terminations that is applicable for the setup.

17) What is RIP?

RIP, short for Routing Information Protocol is used by routers to send data from one network to another. It efficiently manages routing data by broadcasting its routing table to all other routers within the network. It determines the network distance in units of hops.

18) What are different ways of securing a computer network?

There are several ways to do this. Install reliable and updated anti-virus program on all computers. Make sure firewalls are setup and configured properly. User authentication will also help a lot. All of these combined would make a highly secured network.

19) What is NIC?

NIC is short for Network Interface Card. This is a peripheral card that is attached to a PC in order to connect to a network. Every NIC has its own MAC address that identifies the PC on the network.

20) What is WAN?

WAN stands for Wide Area Network. It is an interconnection of computers and devices that are geographically dispersed. It connects networks that are located in different regions and countries.

21) What is the importance of the OSI Physical Layer?

The physical layer does the conversion from data bits to electrical signal, and vice versa. This is where network devices and cable types are considered and setup.

22) How many layers are there under TCP/IP?

There are four layers: the Network Layer, Internet Layer, Transport Layer and Application Layer.

23) What are proxy servers and how do they protect computer networks?

Proxy servers primarily prevent external users who identifying the IP addresses of an internal network. Without knowledge of the correct IP address, even the physical location of the network cannot be identified. Proxy servers can make a network virtually invisible to external users.

24) What is the function of the OSI Session Layer?

This layer provides the protocols and means for two devices on the network to communicate with each other by holding a session. This includes setting up the session, managing information exchange during the session, and tear-down process upon termination of the session.

25) What is the importance of implementing a Fault Tolerance System? Are there limitations?

A fault tolerance system ensures continuous data availability. This is done by eliminating a single point of failure. However, this type of system would not be able to protect data in some cases, such as in accidental deletions.

26) What does 10Base-T mean?

The 10 refers to the data transfer rate, in this case is 10Mbps. The word Base refers to base band, as oppose to broad band. T means twisted pair, which is the cable used for that network.

27) What is a private IP address?

Private IP addresses are assigned for use on intranets. These addresses are used for internal networks and are not routable on external public networks. These ensures that no conflicts are present among internal networks while at the same time the same range of private IP addresses are reusable for multiple intranets since they do not "see" each other.

28) What is NOS?

NOS, or Network Operating System, is specialized software whose main task is to provide network connectivity to a computer in order for it to be able to communicate with other computers and connected devices.

29) What is DoS?

DoS, or Denial-of-Service attack, is an attempt to prevent users from being able to access the internet or any other network services. Such attacks may come in different forms and are done by a group of perpetuators. One common method of doing this is to overload the system server so it cannot anymore process legitimate traffic and will be forced to reset.

30) What is OSI and what role does it play in computer networks?

OSI (Open Systems Interconnect) serves as a reference model for data communication. It is made up of 7 layers, with each layer defining a particular aspect on how network devices connect and communicate with one another. One layer may deal with the physical media used, while another layer dictates how data is actually transmitted across the network.

31) What is the purpose of cables being shielded and having twisted pairs?

The main purpose of this is to prevent crosstalk. Crosstalks are electromagnetic interferences or noise that can affect data being transmitted across cables.

32) What is the advantage of address sharing?

By using address translation instead of routing, address sharing provides an inherent security benefit. That's because host PCs on the Internet can only see the public IP address of the external interface on the computer that provides address translation and not the private IP addresses on the internal network.

33) What are MAC addresses?

MAC, or Media Access Control, uniquely identifies a device on the network. It is also known as physical address or Ethernet address. A MAC address is made up of 6-byte parts.

34) What is the equivalent layer or layers of the TCP/IP Application layer in terms of OSI reference model?

The TCP/IP Application layer actually has three counterparts on the OSI model: the Session layer, Presentation Layer and Application Layer.

35) How can you identify the IP class of a given IP address?

By looking at the first octet of any given IP address, you can identify whether it's Class A, B or C. If the first octet begins with a 0 bit, that address is Class A. If it begins with bits 10 then that address is a Class B address. If it begins with 110, then it's a Class C network.

36) What is the main purpose of OSPF?

OSPF, or Open Shortest Path First, is a link-state routing protocol that uses routing tables to determine the best possible path for data exchange.

37) What are firewalls?

Firewalls serve to protect an internal network from external attacks. These external threats can be hackers who want to steal data or computer viruses that can wipe out data in an instant. It also prevents other users from external networks from gaining access to the private network.

38) Describe star topology

Star topology consists of a central hub that connects to nodes. This is one of the easiest to setup and maintain.

39) What are gateways?

Gateways provide connectivity between two or more network segments. It is usually a computer that runs the gateway software and provides translation services. This translation is a key in allowing different systems to communicate on the network.

40) What is the disadvantage of a star topology?

One major disadvantage of star topology is that once the central hub or switch get damaged, the entire network becomes unusable.

41) What is SLIP?

SLIP, or Serial Line Interface Protocol, is actually an old protocol developed during the early UNIX days. This is one of the protocols that are used for remote access.

42) Give some examples of private network addresses.

10.0.0.0 with a subnet mask of 255.0.0.0172.16.0.0 with subnet mask of 255.240.0.0192.168.0.0 with subnet mask of 255.255.0.0

43) What is tracert?

Tracert is a Windows utility program that can used to trace the route taken by data from the router to the destination network. It also shows the number of hops taken during the entire transmission route.

44) What are the functions of a network administrator?

A network administrator has many responsibilities that can be summarize into 3 key functions: installation of a network, configuration of network settings, and maintenance/troubleshooting of networks.

45) Describe at one disadvantage of a peer to peer network.

When you are accessing the resources that are shared by one of the workstations on the network, that workstation takes a performance hit.

46) What is Hybrid Network?

A hybrid network is a network setup that makes use of both client-server and peer-to-peer architecture.

47) What is DHCP?

DHCP is short for Dynamic Host Configuration Protocol. Its main task is to automatically assign an IP address to devices across the network. It first checks for the next available address not yet taken by any device, then assigns this to a network device.

48) What is the main job of the ARP?

The main task of ARP or Address Resolution Protocol is to map a known IP address to a MAC layer address.

49) What is TCP/IP?

TCP/IP is short for Transmission Control Protocol / Internet Protocol. This is a set of protocol layers that is designed to make data exchange possible on different types of computer networks, also known as heterogeneous network.

50) How can you manage a network using a router?

Routers have built in console that lets you configure different settings, like security and data logging. You can assign restrictions to computers, such as what resources it is allowed access, or what particular time of the day they can browse the internet. You can even put restrictions on what websites are not viewable across the entire network.

51) What protocol can be applied when you want to transfer files between different platforms, such between UNIX systems and Windows servers?

Use FTP (File Transfer Protocol) for file transfers between such different servers. This is possible because FTP is platform independent.

52) What is the use of a default gateway?

Default gateways provide means for the local networks to connect to the external network. The default gateway for connecting to the external network is usually the address of the external router port.

53) One way of securing a network is through the use of passwords. What can be considered as good passwords?

Good passwords are made up of not just letters, but by combining letters and numbers. A password that combines uppercase and lowercase letters is favorable than one that uses all upper case or all lower case letters. Passwords must be not words that can easily be guessed by hackers, such as dates, names, favorites, etc. Longer passwords are also better than short ones.

54) What is the proper termination rate for UTP cables?

The proper termination for unshielded twisted pair network cable is 100 ohms.

55) What is netstat?

Netstat is a command line utility program. It provides useful information about the current TCP/IP settings of a connection.

56) What is the number of network IDs in a Class C network?

For a Class C network, the number of usable Network ID bits is 21. The number of possible network IDs is 2 raised to 21 or 2,097,152. The number of host IDs per network ID is 2 raised to 8 minus 2, or 254.

57) What happens when you use cables longer than the prescribed length?

Cables that are too long would result in signal loss. This means that data transmission and reception would be affected, because the signal degrades over length.

58) What common software problems can lead to network defects?

Software related problems can be any or a combination of the following:

• client server problems
• application conflicts
• error in configuration
• protocol mismatch
• security issues
• user policy and rights issues

59) What is ICMP?

ICMP is Internet Control Message Protocol. It provides messaging and communication for protocols within the TCP/IP stack. This is also the protocol that manages error messages that are used by network tools such as PING.

60) What is Ping?

Ping is a utility program that allows you to check connectivity between network devices on the network. You can ping a device by using its IP address or device name, such as a computer name.

61) What is peer to peer?

Peer to peer are networks that does not reply on a server. All PCs on this network act as individual workstations.

62) What is DNS?

DNS is Domain Name System. The main function of this network service is to provide host names to TCP/IP address resolution.

63) What advantages does fiber optics have over other media?

One major advantage of fiber optics is that is it less susceptible to electrical interference. It also supports higher bandwidth, meaning more data can be transmitted and received. Signal degrading is also very minimal over long distances.

64) What is the difference between a hub and a switch?

A hub acts as a multiport repeater. However, as more and more devices connect to it, it would not be able to efficiently manage the volume of traffic that passes through it. A switch provides a better alternative that can improve the performance especially when high traffic volume is expected across all ports.

65) What are the different network protocols that are supported by Windows RRAS services?

There are three main network protocols supported: NetBEUI, TCP/IP, and IPX.

66) What are the maximum networks and hosts in a class A, B and C network?

For Class A, there are 126 possible networks and 16,777,214 hostsFor Class B, there are 16,384 possible networks and 65,534 hostsFor Class C, there are 2,097,152 possible networks and 254 hosts

67) What is the standard color sequence of a straight-through cable?

orange/white, orange, green/white, blue, blue/white, green, brown/white, brown.

68) What protocols fall under the Application layer of the TCP/IP stack?

The following are the protocols under TCP/IP Application layer: FTP, TFTP, Telnet and SMTP.

69) You need to connect two computers for file sharing. Is it possible to do this without using a hub or router?

Yes, you can connect two computers together using only one cable. A crossover type cable can be use in this scenario. In this setup, the data transmit pin of one cable is connected to the data receive pin of the other cable, and vice versa.

70) What is ipconfig?

Ipconfig is a utility program that is commonly used to identify the addresses information of a computer on a network. It can show the physical address as well as the IP address.

71) What is the difference between a straight-through and crossover cable?

A straight-through cable is used to connect computers to a switch, hub or router. A crossover cable is used to connect two similar devices together, such as a PC to PC or Hub to hub.

72) What is client/server?

Client/server is a type of network wherein one or more computers act as servers. Servers provide a centralized repository of resources such as printers and files. Clients refers to workstation that access the server.

73) Describe networking.

Networking refers to the inter connection between computers and peripherals for data communication. Networking can be done using wired cabling or through wireless link.

74) When you move the NIC cards from one PC to another PC, does the MAC address gets transferred as well?

Yes, that's because MAC addresses are hard-wired into the NIC circuitry, not the PC. This also means that a PC can have a different MAC address when the NIC card was replace by another one.

75) Explain clustering support

Clustering support refers to the ability of a network operating system to connect multiple servers in a fault-tolerant group. The main purpose of this is the in the event that one server fails, all processing will continue on with the next server in the cluster.

76) In a network that contains two servers and twenty workstations, where is the best place to install an Anti-virus program?

An anti-virus program must be installed on all servers and workstations to ensure protection. That's because individual users can access any workstation and introduce a computer virus when plugging in their removable hard drives or flash drives.

77) Describe Ethernet.

Ethernet is one of the popular networking technologies used these days. It was developed during the early 1970s and is based on specifications as stated in the IEEE. Ethernet is used in local area networks.

78) What are some drawbacks of implementing a ring topology?

In case one workstation on the network suffers a malfunction, it can bring down the entire network. Another drawback is that when there are adjustments and reconfigurations needed to be performed on a particular part of the network, the entire network has to be temporarily brought down as well.

79) What is the difference between CSMA/CD and CSMA/CA?

CSMA/CD, or Collision Detect, retransmits data frames whenever a collision occurred. CSMA/CA, or Collision Avoidance, will first broadcast intent to send prior to data transmission.

80) What is SMTP?

SMTP is short for Simple Mail Transfer Protocol. This protocol deals with all Internal mail, and provides the necessary mail delivery services on the TCP/IP protocol stack.

81) What is multicast routing?

Multicast routing is a targeted form of broadcasting that sends message to a selected group of user, instead of sending it to all users on a subnet.

82) What is the importance of Encryption on a network?

Encryption is the process of translating information into a code that is unreadable by the user. It is then translated back or decrypted back to its normal readable format using a secret key or password. Encryption help ensure that information that is intercepted halfway would remain unreadable because the user has to have the correct password or key for it.

83) How are IP addresses arranged and displayed?

IP addresses are displayed as a series of four decimal numbers that are separated by period or dots. Another term for this arrangement is the dotted decimal format. An example is 192.168.101.2

84) Explain the importance of authentication.

Authentication is the process of verifying a user's credentials before he can log into the network. It is normally performed using a username and password. This provides a secure means of limiting the access from unwanted intruders on the network.

85) What do mean by tunnel mode?

This is a mode of data exchange wherein two communicating computers do not use IPSec themselves. Instead, the gateway that is connecting their LANs to the transit network creates a virtual tunnel that uses the IPSec protocol to secure all communication that passes through it.

86) What are the different technologies involved in establishing WAN links?

Analog connections - using conventional telephone lines; Digital connections - using digital-grade telephone lines; switched connections - using multiple sets of links between sender and receiver to move data.

87) What is one advantage of mesh topology?

In the event that one link fails, there will always be another available. Mesh topology is actually one of the most fault-tolerant network topology.

88) When troubleshooting computer network problems, what common hardware-related problems can occur?

A large percentage of a network is made up of hardware. Problems in these areas can range from malfunctioning hard drives, broken NICs and even hardware startups. Incorrectly hardware configuration is also one of those culprits to look into.

89) What can be done to fix signal attenuation problems?

A common way of dealing with such a problem is to use repeaters and hub, because it will help regenerate the signal and therefore prevent signal loss. Checking if cables are properly terminated is also a must.

90) How does dynamic host configuration protocol aid in network administration?

Instead of having to visit each client computer to configure a static IP address, the network administrator can apply dynamic host configuration protocol to create a pool of IP addresses known as scopes that can be dynamically assigned to clients.

91) Explain profile in terms of networking concept?

Profiles are the configuration settings made for each user. A profile may be created that puts a user in a group, for example.

92) What is sneakernet?

Sneakernet is believed to be the earliest form of networking wherein data is physically transported using removable media, such as disk, tapes.

93) What is the role of IEEE in computer networking?

IEEE, or the Institute of Electrical and Electronics Engineers, is an organization composed of engineers that issues and manages standards for electrical and electronic devices. This includes networking devices, network interfaces, cablings and connectors.

94) What protocols fall under the TCP/IP Internet Layer?

There are 4 protocols that are being managed by this layer. These are ICMP, IGMP, IP and ARP.

95) When it comes to networking, what are rights?

Rights refer to the authorized permission to perform specific actions on the network. Each user on the network can be assigned individual rights, depending on what must be allowed for that user.

96) What is one basic requirement for establishing VLANs?

A VLAN is required because at switch level there is only one broadcast domain, it means whenever new user is connected to switch this information is spread throughout the network. VLAN on switch helps to create separate broadcast domain at switch level. It is used for security purpose.

97) What is IPv6?

IPv6 , or Internet Protocol version 6, was developed to replace IPv4. At present, IPv4 is being used to control internet traffic, butis expected to get saturated in the near future. IPv6 was designed to overcome this limitation.

98) What is RSA algorithm?

RSA is short for Rivest-Shamir-Adleman algorithm. It is the most commonly used public key encryption algorithm in use today.

99) What is mesh topology?

Mesh topology is a setup wherein each device is connected directly to every other device on the network. Consequently, it requires that each device have at least two network connections.

100) what is the maximum segment length of a 100Base-FX network?

The maximum allowable length for a network segment using 100Base-FX is 412 meters. The maximum length for the entire network is 5 kilometers.

101) What are the layers in OSI Reference Models? Describe each layer briefly.

Ans:  Given below are the seven layers of OSI Reference Models:

#1) Physical Layer (Layer 1): Physical Layer converts data bits into electrical impulse or radio signals. E.g. Ethernet.

#2) Data Link Layer (Layer 2): At Data Link layer, data packets are encoded and decoded into bits and it provides a node to node data transfer. Data Link Layer also detects the errors occurred at Layer 1.

#3) Network Layer (Layer 3): Network Layer transfers variable length data sequence from one node to another node in the same network. This variable length data sequence is also known as “Datagrams”.

#4) Transport Layer (Layer 4): It transfers data between nodes and also provides acknowledgment of successful data transmission. It keeps track of transmission and sends the segments again if the transmission fails.

image source: OSI Reference Model

#5) Session Layer (Layer 5): Session Layer manages and controls the connections between computers. It establishes, coordinates, exchange and terminates the connections between local and the remote applications.

#6) Presentation Layer (Layer 6): It is also called as “Syntax Layer”. Layer 6 transforms the data into the form in which the application layer accepts.

#7) Application Layer (Layer 7): This is the last layer of OSI Reference Model and is the one which is close to the end user. Both end-user and application layer interacts with the software application. This layer provides services for email, file transfer etc.

102) What is the difference between Hub, Switch, and Router?

Ans:

Hub	Switch	Router
Hub is least expensive, least intelligent and least complicated of the three. It broadcast all data to every port which may cause serious security and reliability concern	Switches work similarly like Hubs but in a more efficient manner. It creates connections dynamically and provides information only to the requesting port	The router is smartest and most complicated out of these three. It comes in all shapes and sizes. Routers are similar like little computers dedicated for routing network traffic
In a Network, Hub is a common connection point for devices connected to the network. Hub contains multiple ports and is used to connect segments of LAN	Switch is a device in a network which forwards packets in a network	Routers are located at gateway and forwards data packets

103) Explain TCP/IP Model

Ans: The most widely used and available protocol is TCP/IP i.e. Transmission Control Protocol and Internet Protocol. TCP/IP specifies how data should be packaged, transmitted and routed in their end to end data communication.

There are four layers as shown in the below diagram:

image source: TCP/IP

Given below is a brief explanation of each layer:

• Application Layer: This is the top layer in TCP/IP model. It includes processes which use Transport Layer Protocol to transmit the data to their destination. There are different Application Layer Protocols such as HTTP, FTP, SMTP, SNMP protocols etc.
• Transport Layer: It receives the data from the Application Layer which is above Transport Layer. It acts as a backbone between the host's system connected with each other and it mainly concerns about the transmission of data. TCP and UDP are mainly used as a Transport Layer protocols.
• Network or Internet Layer: This layer sends the packets across the network. Packets mainly contain source & destination IP addresses and actual data to be transmitted.
• Network Interface Layer: It is the lowest layer of TCP/IP model. It transfers the packets between different hosts. It includes encapsulation of IP packets into frames, mapping IP addresses to physical hardware devices etc.

104) What are TCP and UDP?

Ans: Common factors in TCP and UDP:

• TCP and UDP are the most widely used protocols that are built on the top of IP protocol.
• Both protocols TCP and UDP are used to send bits of data over the internet, which is also known as ‘packets’.
• When packets are transferred using either TCP or UDP, it is sent to an IP address. These packets are traversed through routers to the destination.

TCP	UDP
TCP stands for Transmission Control Protocol	UDP is stands for User Datagram Protocol or Universal Datagram Protocol
Once the connection is setup, data can be sent bi-directional i.e. TCP is a connection oriented protocol	UDP is connectionless, simple protocol. Using UDP, messages are sent as packets
The speed of TCP is slower than UDP	UDP is faster compared to TCP
TCP is used for the application where time is not critical part of data transmission	UDP is suitable for the applications which require fast transmission of data and time is crucial in this case.
TCP transmission occurs in a sequential manner	UDP transmission also occurs in a sequential manner but it does not maintain the same sequence when it reaches the destination
It is heavy weight connection	It is lightweight transport layer
TCP tracks the data sent to ensure no data loss during data transmission	UDP does not ensure whether receiver receives packets are not. If packets are misses then they are just lost

105)What is a Firewall?

Ans: Firewall is a network security system that is used to protect computer networks from unauthorized access. It prevents malicious access from outside to the computer network. A firewall can also be built to grant limited access to the outside users.

The firewall consists of a hardware device, software program or a combined configuration of both. All the messages that route through the Firewall are examined by specific security criteria and the messages which meet the criteria are successfully traversed through the network or else those messages are blocked.

image source: Firewall

Firewalls can be installed just like any other computer software and later can be customized as per the need and have some control over the access and security features. “

Windows Firewall” is an inbuilt Microsoft Windows application which comes along with the operating system. This “Windows Firewall” also helps to prevent viruses, worms etc.

106) What is the network?

• A network is a set of devices that are connected with a physical media link. In a network, two or more nodes are connected by a physical link or two or more networks are connected by one or more nodes.
• A network is a collection of devices connected to each other to allow the sharing of data.
• Example of a network is an internet. An internet connects the millions of people across the world.

107) What do you mean by network topology?

Network topology specifies the layout of a computer network. It shows how devices and cables are connected to each other. The types of topologies are:

Bus:

• Bus topology is a network topology in which all the nodes are connected to a single cable known as a central cable or bus.
• It acts as a shared communication medium, i.e., if any device wants to send the data to other devices, then it will send the data over the bus which in turn sends the data to all the attached devices.
• Bus topology is useful for a small number of devices. As if the bus is damaged then the whole network fails.

Ring:

• Ring topology is a network topology in which nodes are exactly connected to two or more nodes and thus, forming a single continuous path for the transmission.
• It does not need any central server to control the connectivity among the nodes.
• If the single node is damaged, then the whole network fails.
• Ring topology is very rarely used as it is expensive, difficult to install and manage.
• Examples of Ring topology are SONET network, SDH network, etc.

Star:

• Star topology is a network topology in which all the nodes are connected to a single device known as a central device.
• Star topology requires more cable compared to other topologies. Therefore, it is more robust as a failure in one cable will only disconnect a specific computer connected to this cable.
• If the central device is damaged, then the whole network fails.
• Star topology is very easy to install, manage and troubleshoot.
• Star topology is commonly used in office and home networks.

Mesh:

• Mesh topology is a network topology in which all the nodes are individually connected to other nodes.
• It does not need any central switch or hub to control the connectivity among the nodes.
• Mesh topology is categorized into two parts:
  • Fully connected mesh topology: In this topology, all the nodes are connected to each other.
  • Partially connected mesh topology: In this topology, all the nodes are not connected to each other.
• It is a robust as a failure in one cable will only disconnect the specified computer connected to this cable.
• Mesh topology is rarely used as installation and configuration are difficult when connectivity gets more.
• Cabling cost is high as it requires bulk wiring.

Tree:

• Tree topology is a combination of star and bus topology. It is also known as the expanded star topology.
• In tree topology, all the star networks are connected to a single bus.
• Ethernet protocol is used in this topology.
• In this, the whole network is divided into segments known as star networks which can be easily maintained. If one segment is damaged, but there is no effect on other segments.
• Tree topology depends on the "main bus," and if it breaks, then the whole network gets damaged.

Hybrid

• A hybrid topology is a combination of different topologies to form a resulting topology.
• If star topology is connected with another star topology, then it remains star topology. If star topology is connected with different topology, then it becomes a Hybrid topology.
• It provides flexibility as it can be implemented in a different network environment.
• The weakness of a topology is ignored, and only strength will be taken into consideration.

108) What are the advantages of Distributed Processing?

A list of advantages of distributed processing:

• Secure
• Support Encapsulation
• Distributed database
• Faster Problem solving
• Security through redundancy
• Collaborative Processing

109) What is the criteria to check the network reliability?

Network reliability: Network reliability means the ability of the network to carry out the desired operation through a network such as communication through a network.

Network reliability plays a significant role in the network functionality. The network monitoring systems and devices are the essential requirements for making the network reliable.The network monitoring system identifies the problems that are occurred in the network while the network devices ensure that data should reach the appropriate destination.

The reliability of a network can be measured by the following factors:

• Downtime: The downtime is defined as the required time to recover.
• Failure Frequency: It is the frequency when it fails to work the way it is intended.
• Catastrophe: It indicates that the network has been attacked by some unexpected event such as fire, earthquake.

110) Which are the different factors that affect the security of a network?

There are mainly two security affecting factors:

• Unauthorized Access
• Viruses

111) Which are the different factors that affect the reliability of a network?

The following factors affect the reliability of a network:

• Frequency of failure
• Recovery time of a network after a failure
